Automotive

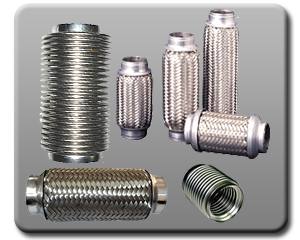

Automotive Exhaust Connector

  DHPL Manufactures Automotive Exhaust Connectors in the sizes
ranging from 1 to 4 inch nominal bore diameter and in lengths
ranging from 4 to 12 inches. All the sizes can also be supplied
with welded ends.

Bellow : Stainless Steel

Braid : Stainless Steel

Cap : Stainless Steel/ Aluminized

Tube Components

  Tube components are made as per customized design and profile
in STEEL & SS PIPES

  Bending is controlled through CNC BENDING m/c to maintain profile

  Child parts (like FLANGES, CLIPS, BENJO's) brazed through skilled
working

  Range from 4mm dia to 76mm dia tube

  Suitable for automobile industry for Air brake routing, Bundy tubes,
Benjo brazed engine components, Oil & Fuel line

Machined Components

  Machined & Forged Components as Adaptors two way, three way,
brazed & welded Components

  Manufactured in various, STEEL and SS Grades as ENIA, IS2062,
SS304, Brass

  Raw material procured from reputed sources

  All parameters controlled through gauges & instruments

  Duly coated with Zinc chromate/green passivated and maintain desired
surface coating

Types Of Automotive Exhaust Connector
Outer Braid

(Used where the temperature of exhaust is upto 650o C )
Outer braid and with lnner Braid lining

(Used where the temperature of exhaust is upto 800o C )
Outer Braid and with Interlock liner

(Used where the temperature level is above 800o C )
